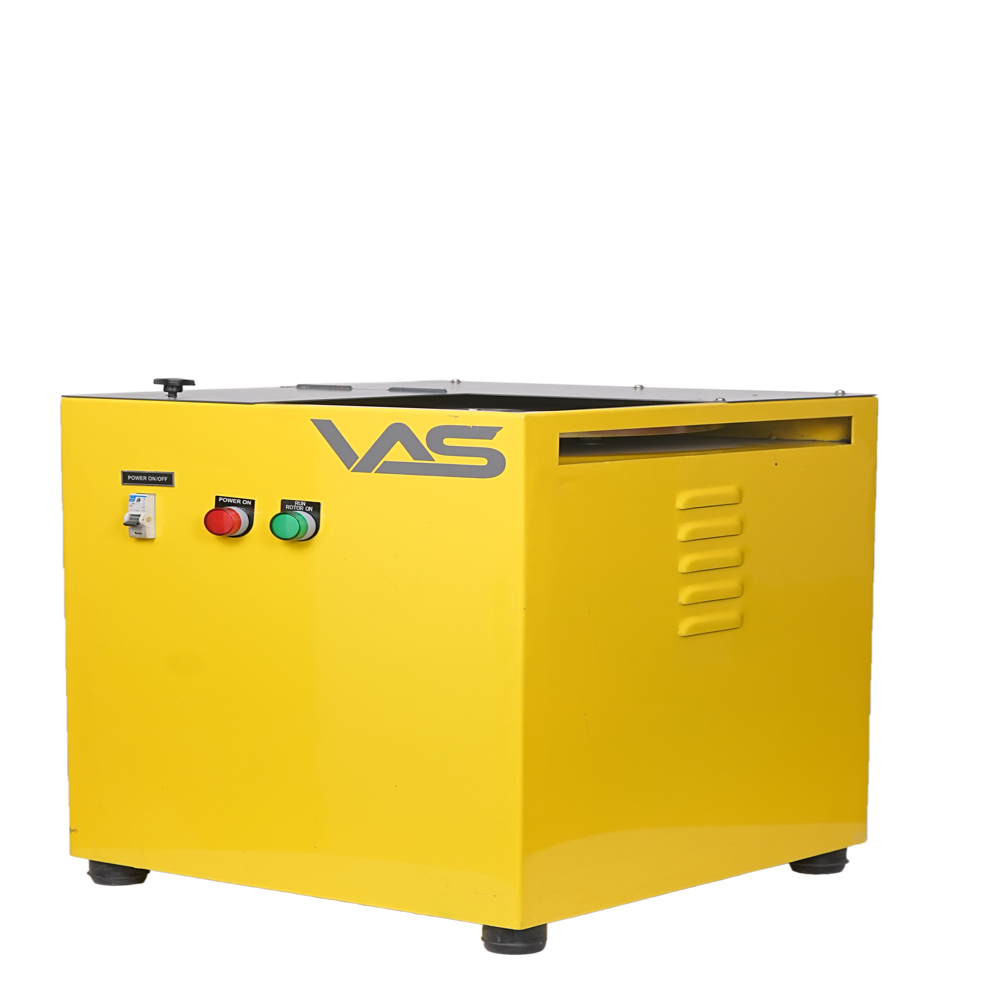

Sample Preparation Machine without Dust Collector

Name: Sample Preparation Machine without Dust Collector
Brand: Accumetrix Systems
Price: 960.0 USD
Availability: InStock

Price 960.0 USD ($)/ Number

Get a Price/Quote

MOQ : 1 Number

Sample Preparation Machine without Dust Collector Specification

Accuracy
0.5%

Power Source
Electric

Temperature Range
Ambient to 180C

Core Components
Motor, Milling Chamber

Frequency
50 Hz

Model No
SPM-1000

Measurement Range
Up to 1000 g/batch

Voltage
230 V

Capacity
1000 g/hr

Feature
Robust Construction, High Performance

Automation Grade
Semi Automatic

Equipment Materials
Mild Steel

Type
Sample Preparation Machine without Dust Collector

Usage
Industrial Laboratory Sample Preparation

Display Type
Analog

Dimension (L*W*H)
46 x 32 x 49 cm

Weight
Approx. 45 kg

Application
Crushing, Grinding and Pulverizing Various Materials for Analysis

Safety Features
Overload Protection, Safety Interlock

Finish
Powder Coated

Operation Mode
Continuous

Motor Power
0.5 HP

Feed Size
Up to 10 mm

Noise Level
< 75 dB

Discharge Size Range
200-300 mesh

About Sample Preparation Machine without Dust Collector

Precision grinding machines designed to produce flat, clean, oxide-free surfaces, a critical prerequisite for reliable OES analysis
Rapid removal of rust, scale, paint, and surface contamination, exposing the true metallic matrix
Ensures surface uniformity and reproducibility, minimizing analytical variation
Suitable for steel, cast iron, aluminium, zinc, and other non-ferrous alloys
Robust construction with optional dust extraction systems for safe, long-term industrial use

Precision and Performance for Laboratory Applications

The SPM-1000 Sample Preparation Machine provides accurate and efficient preparation of samples for analysis in industrial laboratories. With its powerful 0.5 HP motor and continuous operation, it handles materials up to 10 mm feed size, delivering fine results in the 200-300 mesh range. Its analog display and precise controls ensure reliable performance batch after batch.

Robust Construction with User-Centric Design

Built from high-quality mild steel and finished with a powder-coated surface, the machine promises longevity and resilience in demanding laboratory environments. Safety features like overload protection and a safety interlock are integrated to enhance user security. The compact dimensions and moderate weight make it suitable for various workspaces.

Safe, Quiet, and Energy Efficient Operation

Operating at a low noise level below 75 dB, the SPM-1000 ensures laboratory safety and comfort. It functions efficiently on 230 V, 50 Hz electric supply and is equipped with thermal control up to 180C, supporting continuous processing with minimal supervision.

FAQ's of Sample Preparation Machine without Dust Collector:

Q: How does the Sample Preparation Machine ensure safe operation?

A: The SPM-1000 incorporates multiple safety features, including overload protection and a safety interlock system. These mechanisms safeguard both the operator and the equipment during sample processing, automatically halting the machine in case of unsafe operating conditions.

Q: What types of materials can the Sample Preparation Machine handle?

A: This machine is designed for crushing, grinding, and pulverizing a wide range of materials used in analytical testing. It is suitable for industrial laboratory applications involving minerals, soils, chemicals, and similar substances up to 10 mm feed size.

Q: When is it suitable to use this machine instead of a model with dust collection?

A: The SPM-1000 is ideal when the preparation process does not generate significant airborne particles, or when external dust extraction systems are available. It suits well-ventilated labs or applications where dust control is managed separately.

Q: Where can the SPM-1000 Sample Preparation Machine be installed?

A: With its compact size (46 x 32 x 49 cm) and robust build, the machine fits conveniently on laboratory workbenches or in confined industrial spaces, requiring only a 230 V power supply.

Q: What is the process for preparing samples using this machine?

A: To prepare samples, materials are fed (up to 10 mm size) into the milling chamber. The 0.5 HP motor drives continuous crushing and grinding, producing output in the 200-300 mesh range. The ambient to 180C temperature setting and analog controls help optimize the process for precise results.

Q: How can users benefit from the machine's design and features?

A: Users benefit from high-accuracy results (0.5%), robust construction for long-term reliability, efficient 1000 g/hr capacity, and enhanced operator safety. The semi-automatic operation allows continuous workload with minimal intervention, optimizing laboratory productivity.
